4G AI automatic tracking 5MP binocular intelligent spherical camera

4G AI automatic tracking 5MP binocular intelligent spherical camera

4G AI automatic tracking 5MP binocular intelligent spherical camera

MODEL: YZ-B651H22FG-AI

WhatsApp: +86 18928487769

Product Info

YZ-B651H22FG-AI is an outdoor binocular automatic tracking ball machine that supports image transmission over 3G/4G networks across the entire network. It supports intelligent AI humanoid recognition, and different preset positions of the ball machine can correspond to different recognition scenarios. Each preset point corresponds to an independent electronic fence, which can trigger alarms, record videos, and link speakers to sound alarm prompts when humanoid targets enter the alarm area. After setting a special preset position for the gun mechanism, it can be linked with the ball machine to the designated position for automatic tracking.

Product Description

Overview:

YZ-B651H22FG-AI is an outdoor binocular automatic tracking ball machine that supports image transmission over 3G/4G networks across the entire network. It supports intelligent AI humanoid recognition, and different preset positions of the ball machine can correspond to different recognition scenarios. Each preset point corresponds to an independent electronic fence, which can trigger alarms, record videos, and link speakers to sound alarm prompts when humanoid targets enter the alarm area. After setting a special preset position for the gun mechanism, it can be linked with the ball machine to the designated position for automatic tracking.

Product Features:

  • Built in AI algorithm, supports intelligent detection of human figures, and after locking the target, the ball machine algorithm automatically adjusts the pan tilt position and lens focal length to track and enlarge;

  • Support alarm linkage, when recognizing humanoid targets, it can trigger the high pitched speaker to emit alarm prompt sound, trigger alarm recording and alarm push information;

  • Built in microphone, supporting two-way voice intercom function;

  • Support intelligent voice reminder function, the triggered alarm prompt sound can be recorded or input text for voice synthesis;

  • Support electronic fence function, each preset point of the ball machine can correspond to different electronic fences as recognition scenarios;

  • Support the setting of special preset points for the gun mechanism, which can be linked to the ball machine to automatically track the designated position after the gun mechanism triggers an alarm;

  • Adopting high-performance DSP processor, supporting H.265 encoding technology, capable of transmitting high-quality video images under low bandwidth conditions;

  • High performance Mega Progressive Scan CMOS image sensor, with a resolution of millions of pixels while capturing motion images without jagged edges, resulting in clearer images;

  • The ball camera is equipped with a 22x optical zoom lens, which can rotate horizontally 360 degrees continuously and vertically 0 °~+90 ° for better effective monitoring;

  • The ball machine is driven by a high-precision stepper motor, with sensitive response, smooth operation, and an accuracy deviation of less than 0.1 °, ensuring that the image is free of shaking at any speed;

  • The ball machine adopts 4 infrared fill lights and 4 white light fill lights, while the gun machine adopts 3 infrared fill lights and 3 white light fill lights. After an alarm occurs, the infrared fill lights can be linked to switch to white light fill lights, and the image will be converted from black and white to color;

  • 3D-MCTF digital denoising effectively suppresses image noise while enhancing night vision performance;

  • Built in surge protection device for lightning strikes, effectively preventing 4000V instantaneous current;

  • Support P2P remote access function, no need for complicated configuration, plug and play;

  • Supports local storage on TF cards and can support 256GB storage cards;

  • The client supports Android/iOS/Windows systems, allowing real-time monitoring, querying, and downloading of video materials at any time;

  • Supports 3G/4G networks across the entire network, comes with built-in AP hotspots, and is easy to configure;

  • Equipped with one RJ45 10M/100M adaptive Ethernet port, it can share 4G network for other devices to access the internet;


technical specifications:

Parameters/ModelYZ-B651H22FG-AI
Gun mechanismimage sensor1/2.7'  Mega Progressive Scan CMOS
Effective pixels2592 * 1944 (approximately 5 million pixels)
camera lensStandard 6mm high-definition lens (4mm/8mm optional)
illuminationColor: 1.0Lux@F1.6 Black and White: 0.01Lux@F1.6
Video Encoding StandardsH.264/H.265
Video frame rateFirst stream: 2592* 1944@15fps Second stream: 704* 576@20fps
Speed Dome Camerasimage sensor1/2.7'  Mega Progressive Scan CMOS
Effective pixels2592 * 1944 (approximately 5 million pixels)
camera lens22x optical zoom, 6.8mm-120mm (F1.61~F4.13)
illuminationColor: 1.0Lux@F1.6 Black and White: 0.01Lux@F1.6
Minimum focal distance100-2000mm (near focus~far focus)
Maximum observation rangeLevel 58.5-3.7
Video Encoding StandardsH.264/H.265
Video frame rateFirst stream: 2592* 1944@15fps Second stream: 704* 576@20fps
automatic trackingBuilt in AI algorithm, supporting intelligent humanoid recognition. After locking the target, the algorithm automatically adjusts the pan tilt position and lens focal length to track and enlarge
AI alarmSupport detection target setting: The electronic fence supports intelligent humanoid recognition and adjustable sensitivity
Alarm linkage

When a humanoid target is recognized, the high pitched speaker can be triggered to emit an alarm prompt sound and alarm push information;

The triggered alarm prompt sound can be recorded or synthesized by inputting text;
Speaker auto sleep modeSupport, the speaker will only be awakened when conducting intercom or triggering automatic alarm broadcast
Electronic fenceEach preset point can correspond to different electronic fences as recognition scenarios, with a maximum of 16 preset points as a set of patrol points for alerting;
PTZ function

Support pan tilt control, horizontal: 360 ° continuous rotation, vertical: 0 °~+90

Rotation speed: horizontal 0.05~240 °/s, vertical 0.05~180 °/s

Maximum speed240°/s
Number of preset points256 pieces
Cruise route3 items (each can set up to 16 preset points, with adjustable dwell time at preset points)
Guard positionSupport guard position function, can set 1 preset position as a guard position
Gun ball linkageSupport, the ball machine can set special preset positions for gun ball linkage
Wide angle speed limitFocal length/speed automatic matching
Night vision supplementary lightingAdopting dual light sources of infrared and white light for supplementary lighting, the infrared and white light dual light sources can be switched through alarm triggering linkage
monitorBuilt in microphone head, supports monitoring function
Voice intercomOptional speaker, supports two-way voice intercom, and achieves remote calling function
Working frequency band

FDD LTE: B1/B3/B8  TDDLTE: B38/B39/B40/B4

TDSCDMA: B34/B39  WCDMA: B1/B8,GSM: 900/1800

rate

LTE-FDD:Max 150Mbps(DL)  Max 50Mbps(UL

 LTE-TDD:Max 130Mbps(DL)  Max 35Mbps(UL)

DC-HSPA+:Max 42Mbps(DL)  Max 5.76Mbps(UL)

UMTS:Max 384Kbps(DL)  Max 384Kbps(UL)

TD-SCDMA: Max 4.2Mbps(DL) Max 2.2Mbps(UL)

CDMA: Max 3.1Mbps(DL)   Max 1.8Mbps(UL)

EDGE: Max 236.8Kbps(DL)   Max 236.8Kbps(UL)

GPRS: Max 85.6Kbps(DL)   Max 85.6Kbps(UL)

AP hotspotCamera self built AP hotspot, can share 4G network with other wireless devices for internet access
antenna3 SMA interfaces: 4G main antenna * 2, WiFi antenna * 1
Local storageSupport TF card local storage, can support 256GB storage card
Remote monitoringSupport P2P remote monitoring, plug and play
clientSupports Android/iOS/Windows systems, allowing real-time monitoring, querying, and downloading of video materials at any time
Power SupplyDC 16.8V
powerDaytime ≤ 15W, nighttime ≤ 30W (wide-angle, with fill light turned on)
Protection levelIP66, Built in 4000V lightning protection, surge protection, and surge protection
size325 * 220mm, packaging size: 495 * 302 * 295mm
weightApproximately 6.0kg including packaging box
Installation methodWall mounted and hoisting

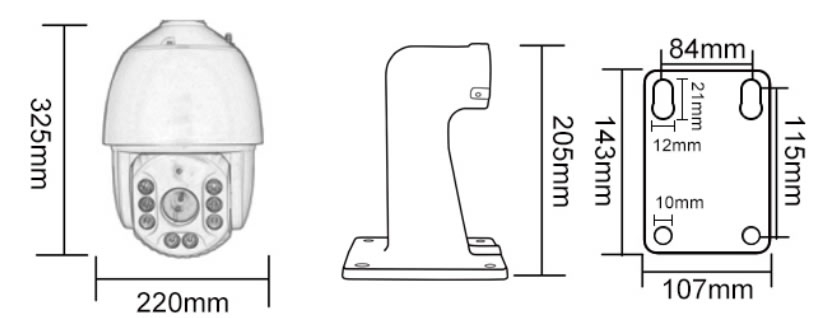

size
