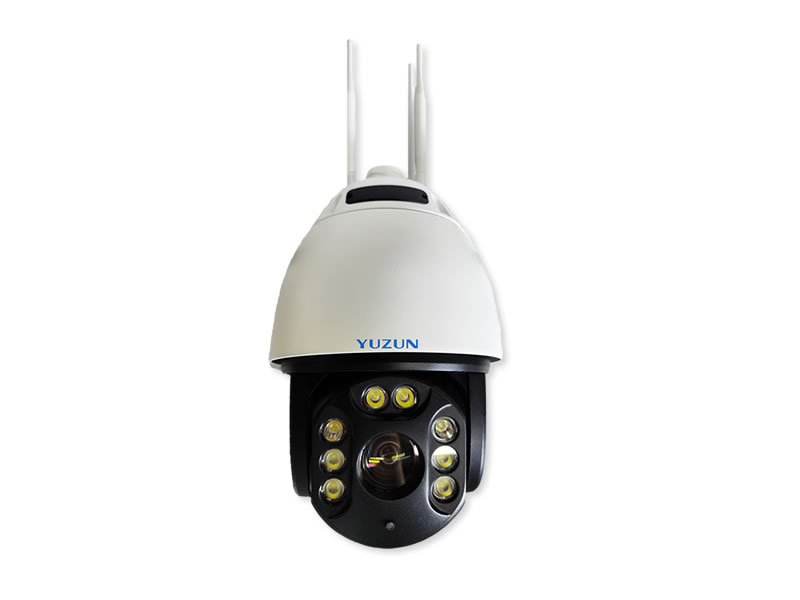

Product Features:
Built in AI algorithm, supports intelligent detection of human figures, and after locking the target, the ball machine algorithm automatically adjusts the pan tilt position and lens focal length to track and enlarge;
Support alarm linkage, when recognizing humanoid targets, it can trigger the high pitched speaker to emit alarm prompt sound, trigger alarm recording and alarm push information;
Built in microphone, supporting two-way voice intercom function;
Support intelligent voice reminder function, the triggered alarm prompt sound can be recorded or input text for voice synthesis;
Support electronic fence function, each preset point of the ball machine can correspond to different electronic fences as recognition scenarios;
Adopting high-performance DSP processor, supporting H.265 encoding technology, capable of transmitting high-quality video images under low bandwidth conditions;
High performance Mega Progressive Scan CMOS image sensor, with a resolution of millions of pixels while capturing motion images without jagged edges, resulting in clearer images;
Equipped with a 22x optical zoom lens, capable of continuous 360 ° horizontal rotation and 0 ° to+90 ° vertical rotation, for better effective monitoring;
Driven by a high-precision stepper motor, it has sensitive response, smooth operation, and an accuracy deviation of less than 0.1 °, ensuring no image shake at any speed;
Adopting 4 infrared fill lights and 4 white fill lights, the infrared fill lights can be linked to switch to white fill lights after an alarm, and the image can be converted from black and white to color;
3D-MCTF digital denoising effectively suppresses image noise while enhancing night vision performance;
Built in surge protection device for lightning strikes, effectively preventing 4000V instantaneous current;
Support P2P remote access function, no need for complicated configuration, plug and play;
Supports local storage on TF cards and can support 256GB storage cards;
The client supports Android/iOS/Windows systems, allowing real-time monitoring, querying, and downloading of video materials at any time;
Supports 3G/4G networks across the entire network, comes with built-in AP hotspots, and is easy to configure;
Equipped with one RJ45 10M/100M adaptive Ethernet port, it can share 4G network for other devices to access the internet;
| Parameters/Model | YZ-B650H22FG-AI |
| image sensor | 1/2.7' Mega Progressive Scan CMOS |
| Effective pixels | 2592 * 1944 (approximately 5 million pixels) |
| camera lens | 22x optical zoom, 6.8mm-120mm (F1.61~F4.13) |
| illumination | Color: 1.0Lux@F1.6 Black and White: 0.01Lux@F1.6 |
| Minimum focal distance | 100-2000mm (near focus~far focus) |
| Maximum observation range | Level 58.5-3.7 |
| Video Encoding Standards | H.264/H.265 |
| Video frame rate | First stream: 2592* 1944@15fps Second stream: 704* 576@20fps |
| automatic tracking | Built in AI algorithm, supporting intelligent humanoid recognition. After locking the target, the algorithm automatically adjusts the pan tilt position and lens focal length to track and enlarge |
| AI alarm | Support detection target setting: The electronic fence supports intelligent humanoid recognition and adjustable sensitivity |
| Alarm linkage | When a humanoid target is recognized, the high pitched speaker can be triggered to emit an alarm prompt sound and alarm push information; The triggered alarm prompt sound can be recorded or synthesized by inputting text; |
| Speaker auto sleep mode | Support, the speaker will only be awakened when conducting intercom or triggering automatic alarm broadcast |
| Electronic fence | Each preset point can correspond to different electronic fences as recognition scenarios, with a maximum of 16 preset points as a set of patrol points for alerting; |
| PTZ function | Support pan tilt control, horizontal: 360 ° continuous rotation, vertical: 0 °~+90 ° Rotation speed: horizontal 0.05~240 °/s, vertical 0.05~180 °/s |
| Maximum speed | 240°/s |
| Number of preset points | 256 pieces |
| Cruise route | 3 items (each can set up to 16 preset points, with adjustable dwell time at preset points) |
| Guard position | Support guard position function, can set 1 preset position as a guard position |
| Gun ball linkage | Support, the ball machine can set special preset positions for gun ball linkage |
| Wide angle speed limit | Focal length/speed automatic matching |
| Night vision supplementary lighting | Using 4 infrared lights and 4 white lights for supplementary lighting, the infrared and white light dual light sources can be switched through alarm triggering linkage |
| monitor | Built in microphone head, supports monitoring function |
| Voice intercom | Optional speaker, supports two-way voice intercom, and achieves remote calling function |
| Working frequency band | FDD LTE: B1/B3/B8 TDDLTE: B38/B39/B40/B41 TDSCDMA: B34/B39 WCDMA: B1/B8，GSM: 900/1800 |
| rate | LTE-FDD：Max 150Mbps(DL) Max 50Mbps(UL LTE-TDD：Max 130Mbps(DL) Max 35Mbps(UL) DC-HSPA+：Max 42Mbps(DL) Max 5.76Mbps(UL) UMTS：Max 384Kbps(DL) Max 384Kbps(UL) TD-SCDMA: Max 4.2Mbps(DL) Max 2.2Mbps(UL) CDMA: Max 3.1Mbps(DL) Max 1.8Mbps(UL) EDGE: Max 236.8Kbps(DL) Max 236.8Kbps(UL) GPRS: Max 85.6Kbps(DL) Max 85.6Kbps(UL) |
| AP hotspot | Camera self built AP hotspot, can share 4G network with other wireless devices for internet access |
| antenna | 3 SMA interfaces: 4G main antenna * 2, WiFi antenna * 1 |
| Local storage | Support TF card local storage, can support 256GB storage card |
| Remote monitoring | Support P2P remote monitoring, plug and play |
| client | Supports Android/iOS/Windows systems, allowing real-time monitoring, querying, and downloading of video materials at any time |
| Power Supply | DC 16.8V |
| power | Daytime ≤ 10W, nighttime ≤ 20W (wide-angle, with fill light turned on) |
| Protection level | IP66， Built in 4000V lightning protection, surge protection, and surge protection |
| size | 325 * 220mm, packaging size: 495 * 302 * 295mm |
| weight | Approximately 5.5kg including packaging box |
| Installation method | Wall mounted and hoisting |
