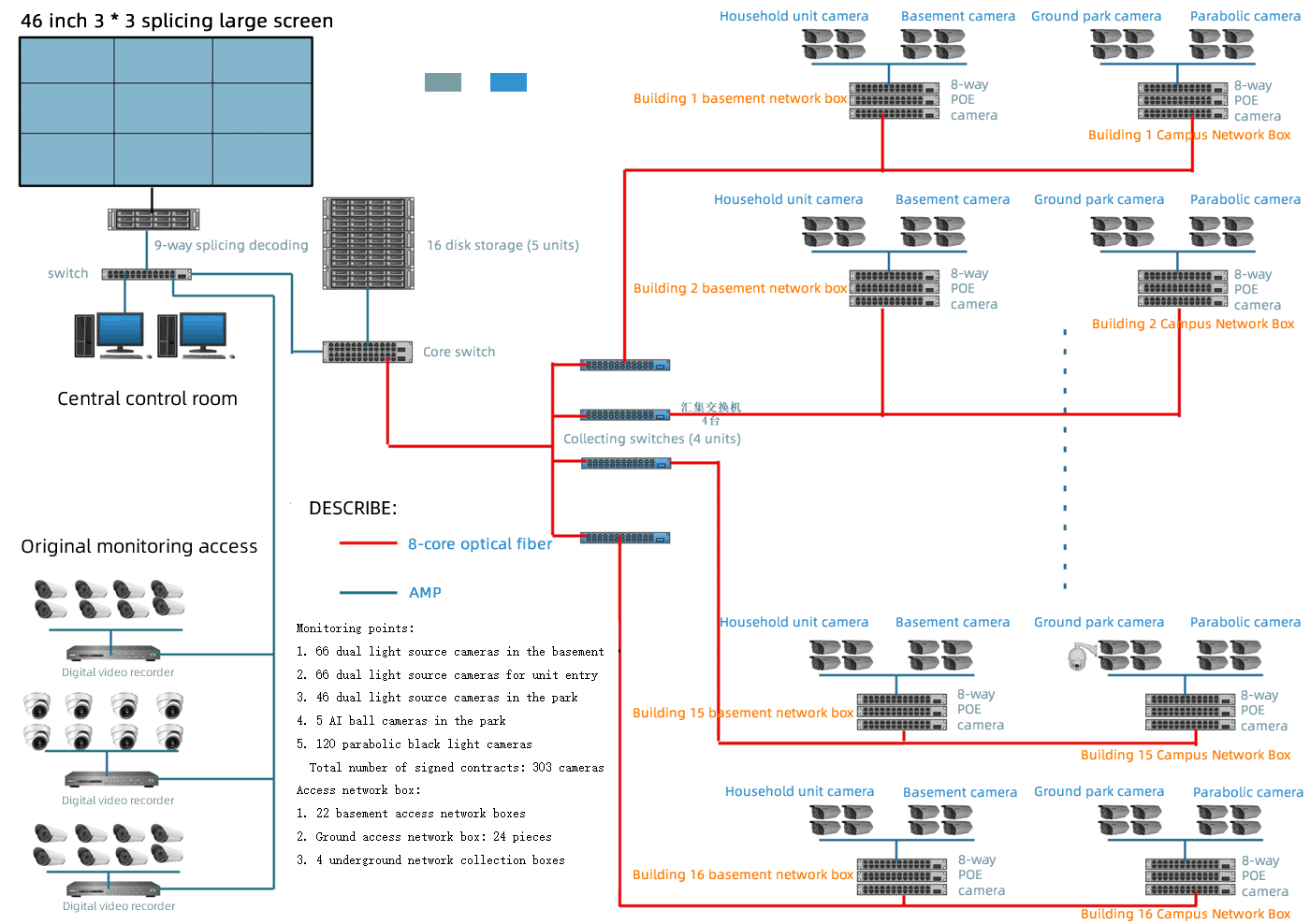

Project Overview
This project is a community renovation project that involves compatibility with multiple brands of equipment. The monitoring equipment includes park monitoring, high-altitude throwing monitoring, garage monitoring, peripheral monitoring, as well as access and storage of existing elevator monitoring and wall display.
Solution features
1、Full color black light
The high-altitude parabolic camera adopts a black light camera, which can present clear images at night without the need for supplementary lighting.
2、Multi brand compatibility
The project is compatible with various devices such as Hikvision, Dahua, and unknown brands of cameras and recorders, enabling easy storage and management.
3、Central Management Platform
The monitoring center realizes centralized storage, management, forwarding, and decoding on the TV wall, achieving unified management and control.
INTRODUCTION TO IOT CLOUD PLATFORM MONITORING SYSTEM

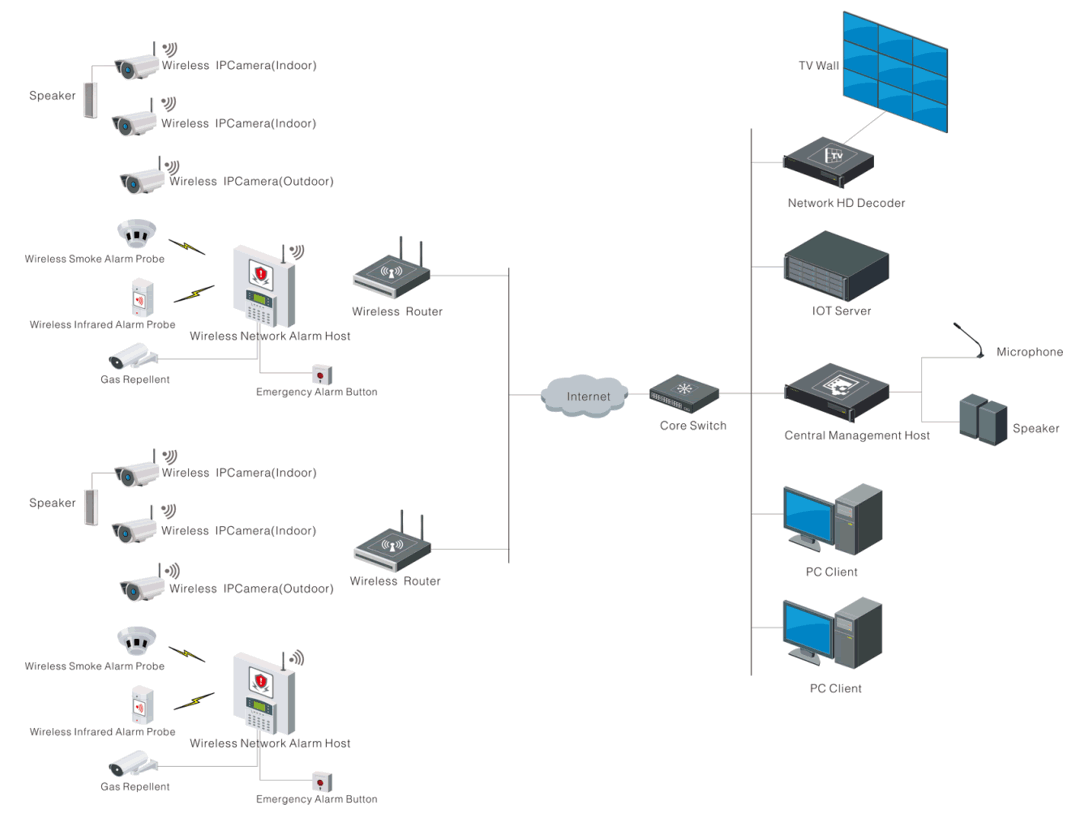

System topology

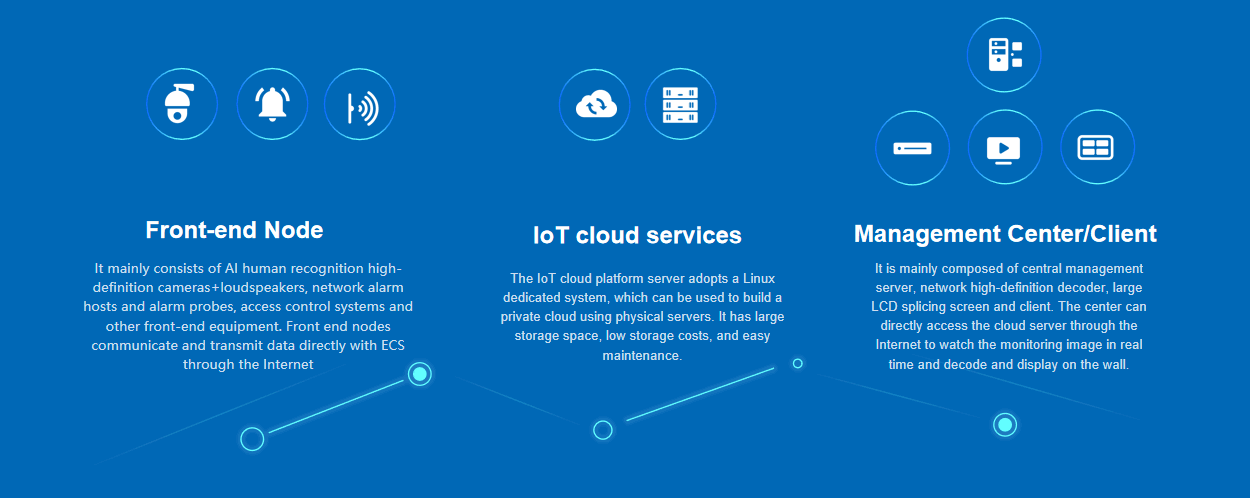

Main components of the platform system

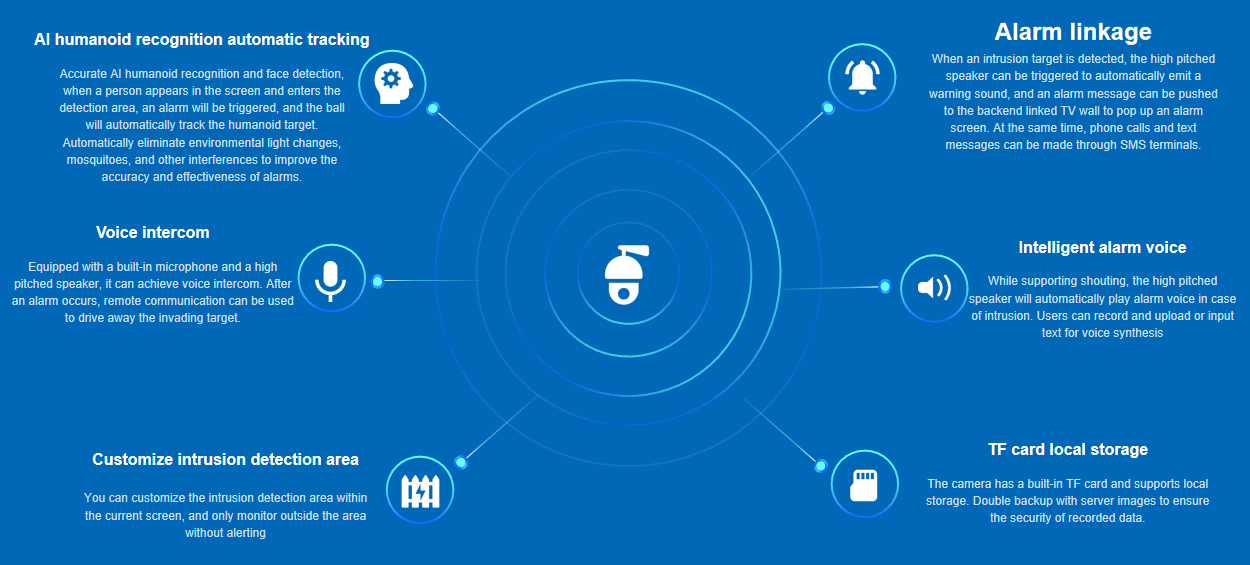

Camera technology features

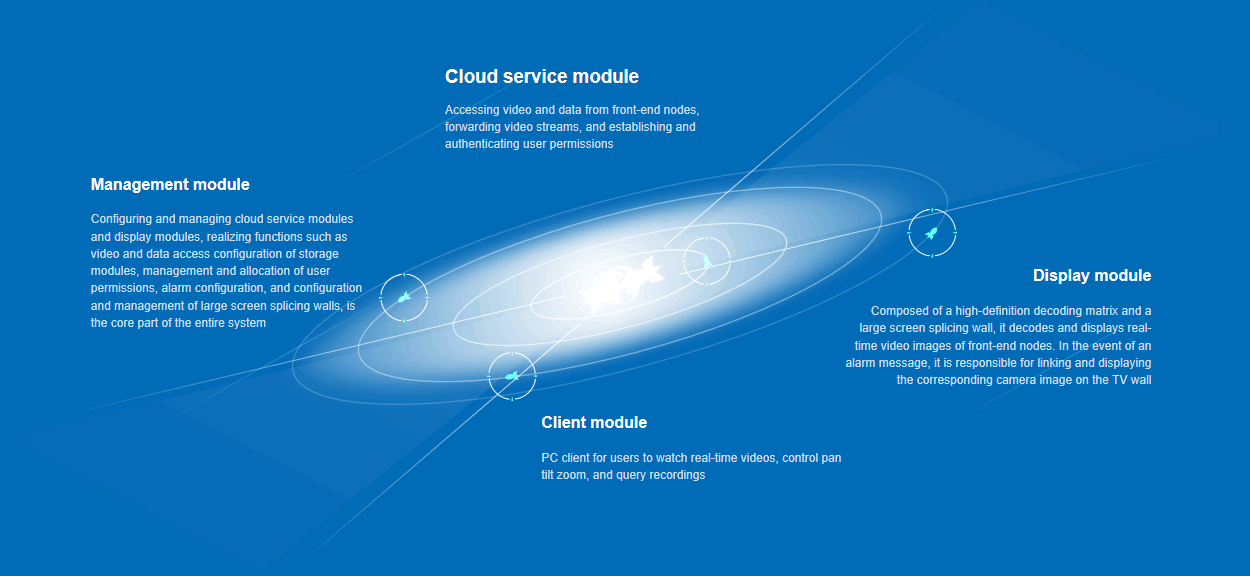

Main components of the system platform

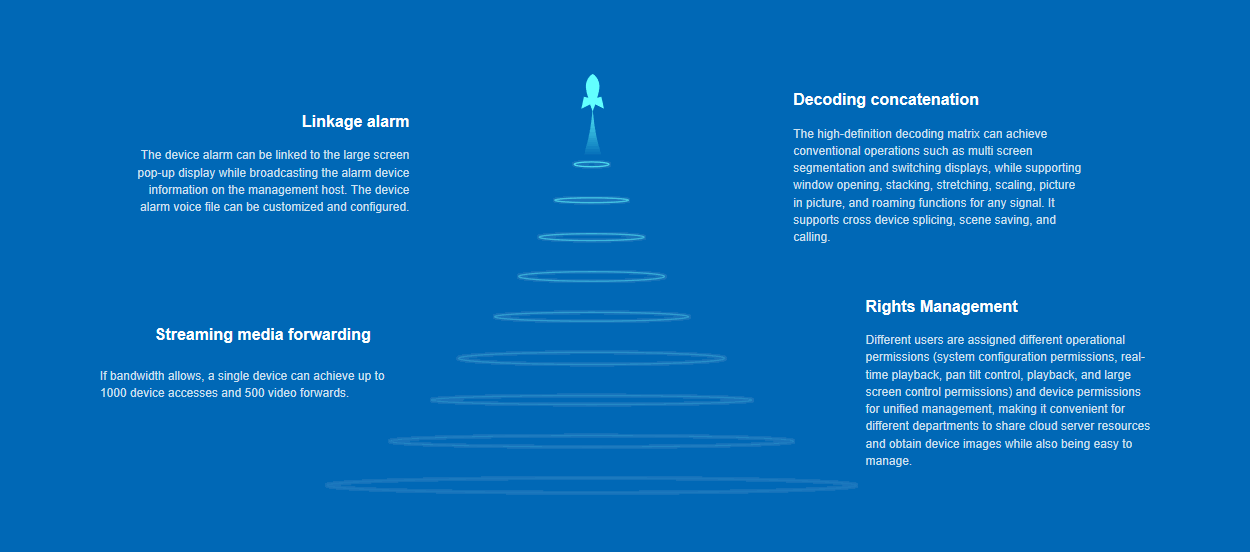

Technical characteristics of system platform

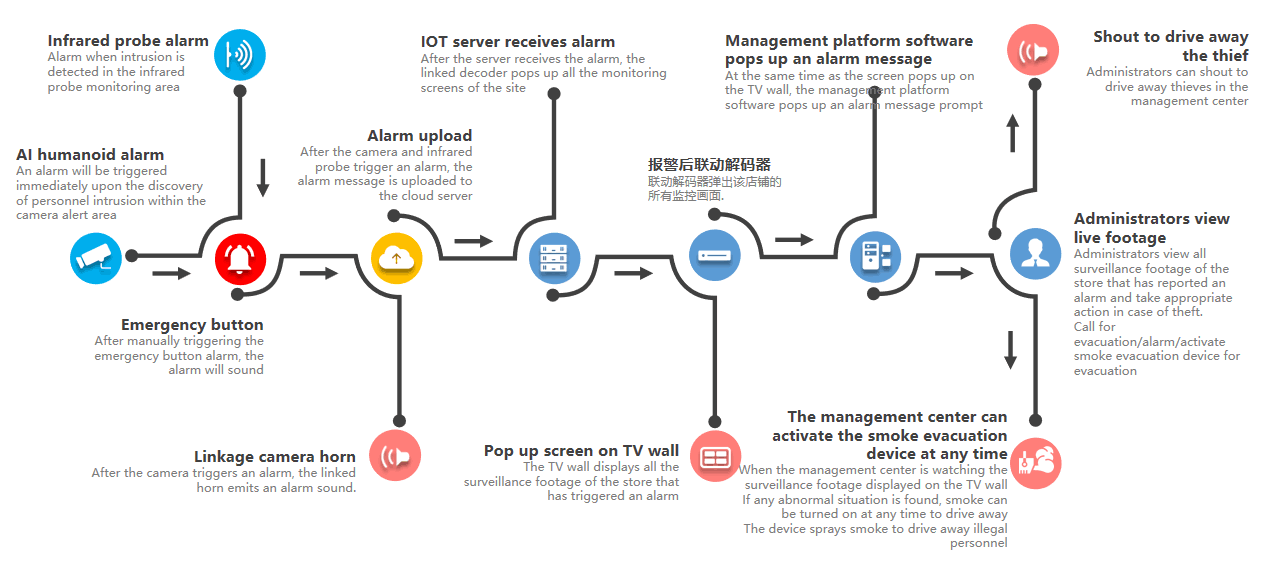

Workflow diagram of IoT cloud platform system
